Asymmetric Cryptopgraphy

Before introducing the asymmetric key encryption schemes and algorithms, we should first understand the concept of public key cryptography (asymmetric cryptography).

The public key cryptography uses a different key to encrypt and decrypt data (or to sign and verify messages). Keys always come as public + private key pairs. Asymmetric cryptography deals with encrypting and decrypting messages using a public / private key, signing messages, verifying signatures and securely exchanging keys.

Popular public-key cryptosystems (asymmetric crypto algorithms) like RSA (Rivest–Shamir–Adleman), ECC (elliptic curve cryptography), Diffie-Hellman, ECDH, ECDSA and EdDSA, are widely used in the modern cryptography and we shall demonstrate most of them in practice with code examples.

Asymmetric encryption is slower and less efficient than symmetric encryption, but it is more secure for certain applications, such as secure communication over the internet.

Key Pairs

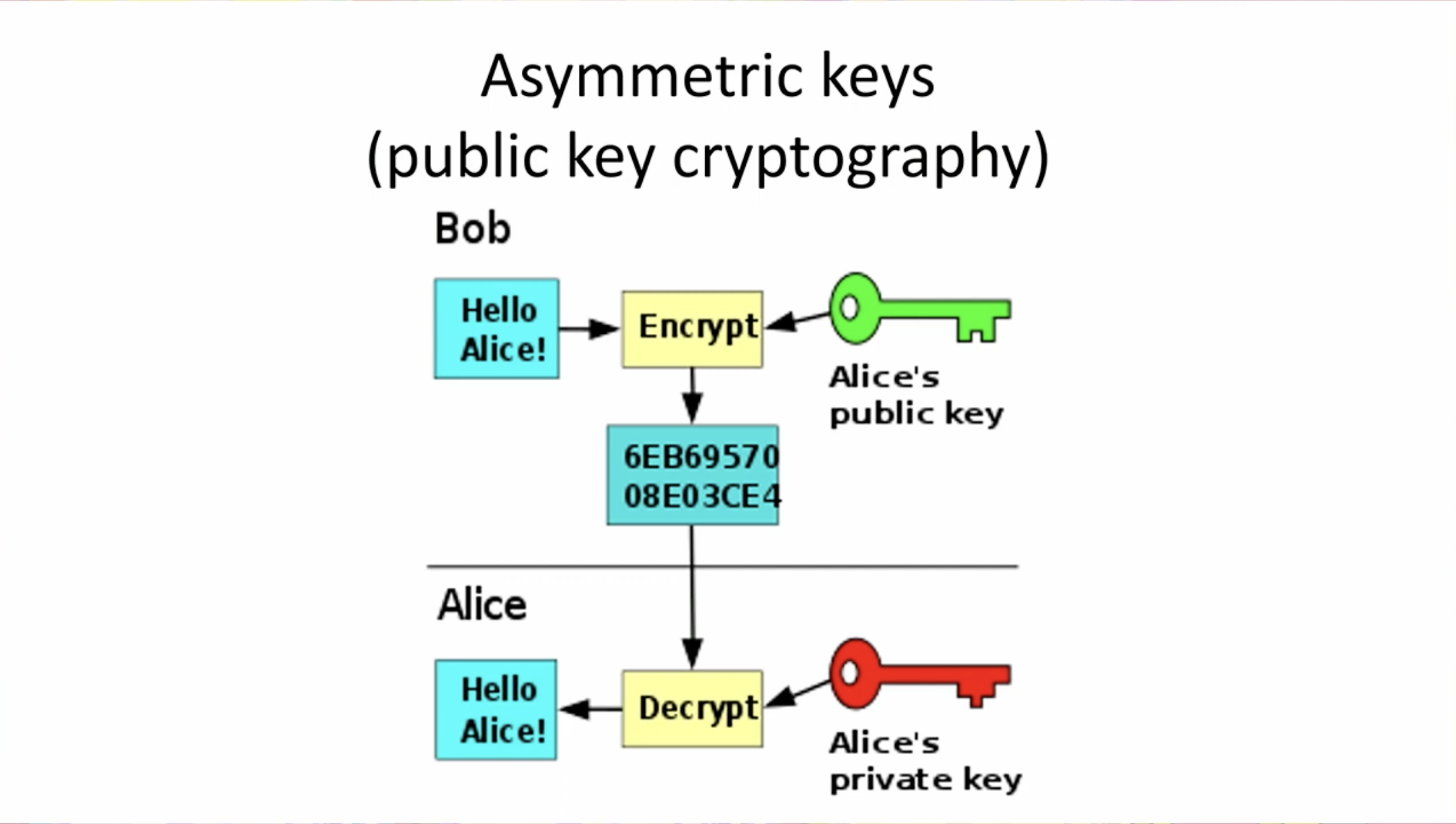

Asymmetric encryption schemes use a pair of cryptographically related public and private keys to encrypt the data (by the public key) and decrypt the encrypted data back to its original forms (by the private key). Data encrypted by a public key is decrypted by the corresponding private key.

The encrypted data, obtained as result of encryption is called ciphertext. The ciphertext is a binary sequence, unreadable by humans and by design cannot be decrypted without the decryption key.

In some public key cryptosystems (like the Elliptic-Curve Cryptography - ECC), the public key can be calculated from the private key. In other cryptosystems (like RSA), the public key and the private key are generated together but cannot be directly calculated from each other.

Usually, a public / private key pair is randomly generated in a secure environment (e.g. in a hardware wallet) and the public key is revealed, while the private key is securely stored in a crypto-wallet and is protected by a password or by multi-factor authentication.

Example of 256-bit private key and its corresponding 256-bit public key (based on secp256k1 curve):

privKey: 648fc1fa828c7f185d825c04a5b21af9e473b867eeee1acea4dbab938433e158
pubKey: 02c324648931b89e3e8a0fc42c96e8e3be2e42812986573a40d46563bceaf75110

Private Keys

Message decryption and signing is done by a private key. The private keys are always kept secret by their owner, just like passwords. In the server infrastructure, private key usually stay in an encrypted and protected keystore. In the blockchain systems the private keys usually stay in specific software or hardware apps or devices called "crypto wallets", which store securely a set of private keys.

Example of 256-bit private key:

648fc1fa828c7f185d825c04a5b21af9e473b867eeee1acea4dbab938433e158

Public Keys

Message encryption and signature verification is done by the public key. Public keys are by design public information (not a secret). It is mathematically infeasible to calculate the private key from its corresponding public key.

In many systems the public key is encapsulated in a digital certificate, which binds certain identity (e.g. person or Internet domain name) to certain public key. In blockchain systems public keys are usually published as parts of the blockchain transactions to help identify who has signed each transaction. In systems like PGP and SSH the public key is downloaded from the server once (after manual user verification) and is remembered for further use.

Example of 256-bit public key:

02c324648931b89e3e8a0fc42c96e8e3be2e42812986573a40d46563bceaf75110

In most blockchain systems the blockchain address is derived from the public key (by hashing and other transformations), so if you have someone's public key, you are assumed to have his blockchain address as well.

A certain public key can be connected to certain person or organization or is used anonymously. You can never know who is the owner of the private key, corresponding to certain public key, unless you have additional proof, e.g. a digital certificate.

Cryptosystems

Public key cryptosystems provide mathematical framework and algorithms to generate public + private key pairs, to sign, verify, encrypt and decrypt messages and exchange keys, in a cryptographically secure way.

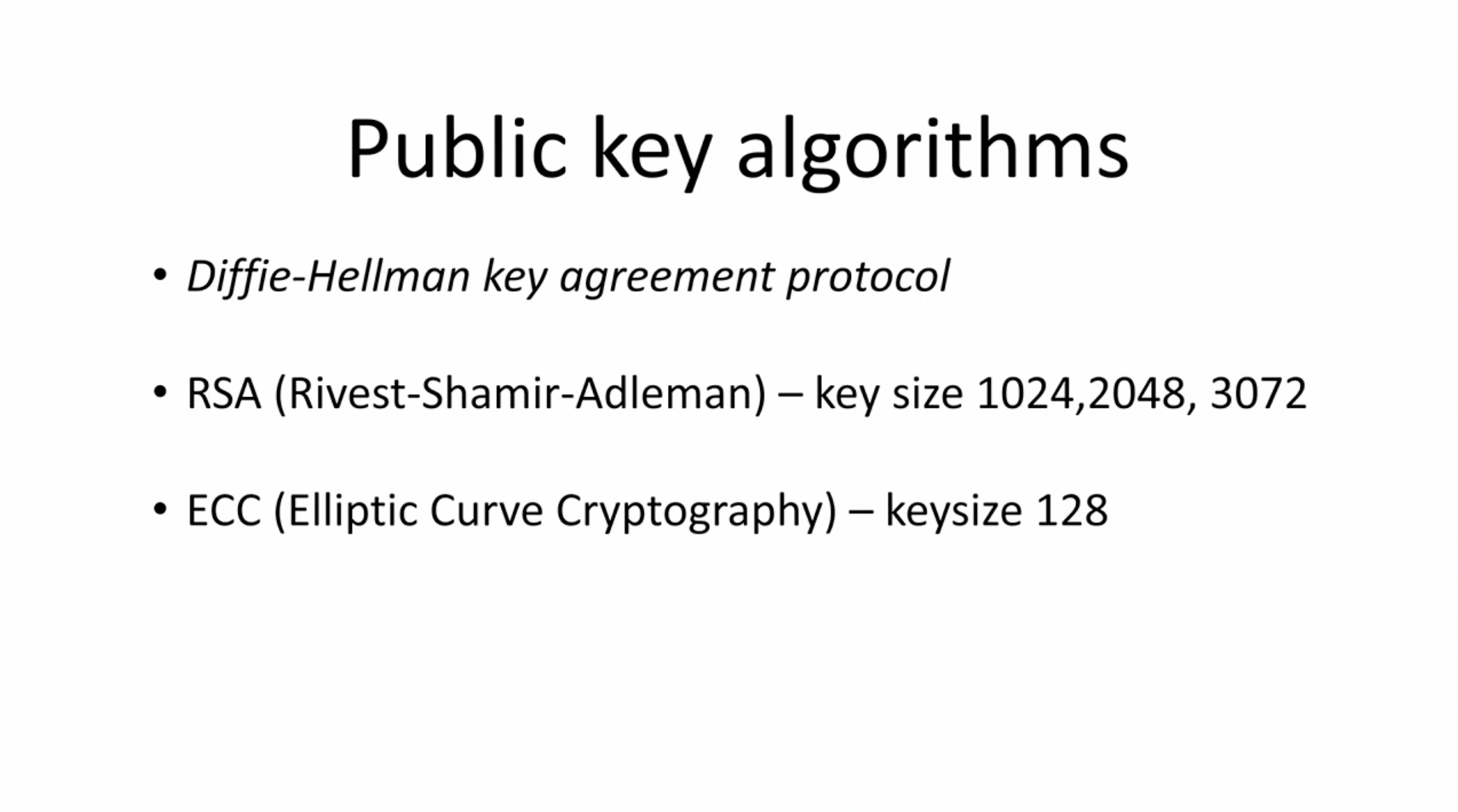

Well-known public-key cryptosystems are: RSA, ECC and ElGamal. Many crypto algorithms are based on the primitives from these cryptosystems like RSA sign, RSA encrypt / decrypt, ECDH key exchange and ECDSA and EdDSA signatures.

RSA

The RSA public-key cryptosystem is based on the math of modular exponentiations (numbers raised to a power by modulus) and some additional assumptions, together with the computational difficulty of the integer factorization problem. We shall discuss it later in details, along with examples.

ECC

The elliptic-curve cryptography (ECC) public-key cryptosystem is based on the math of the on the algebraic structure of the elliptic curves over finite fields and the difficulty of the elliptic curve discrete logarithm problem (ECDLP). The ECC usually comes together with the ECDSA algorithm (elliptic-curve digital signature algorithm). We shall discuss ECC and ECDSA in details, along with examples.

ECC uses smaller keys, ciphertexts and signatures than RSA and is recommended for most applications. It is mathematically proven that a 3072-bit RSA key has similar cryptographic strength to a 256-bit ECC key. Key generation is in ECC is significantly faster than with RSA.

Due to the above reasons most blockchain networks (like Bitcoin and Ethereum) use elliptic-curve-based cryptography (ECC) to secure the transactions.

Encryption/Decryption

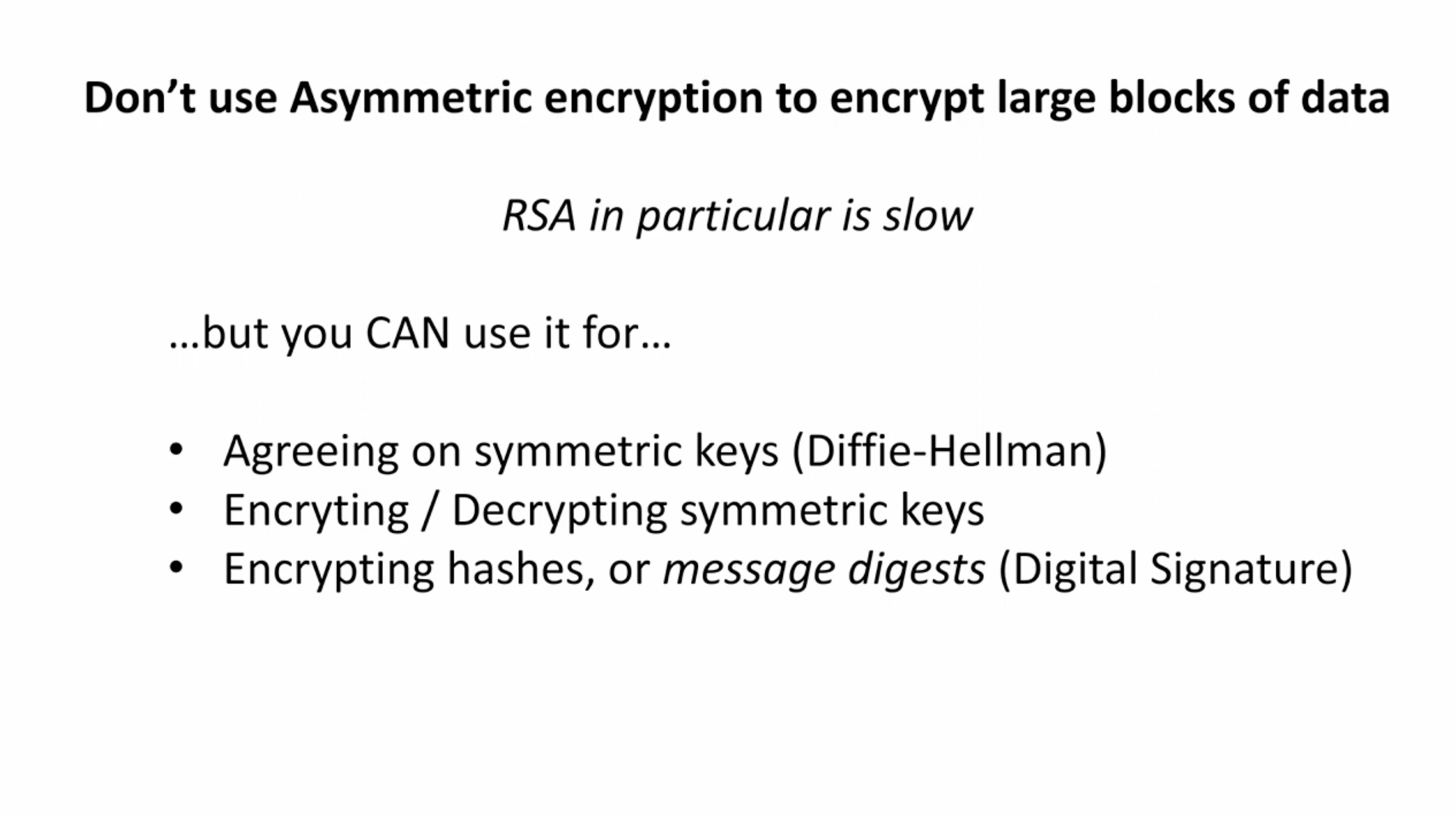

Asymmetric encryption works for small messages only (limited by the public / private key length). To encrypt larger messages key encapsulation mechanisms or other techniques can be used, which encrypt asymmetrically a random secret key, then use it to symmetrically encrypt the larger messages. In practice, modern asymmetric encryption schemes involve using a symmetric encryption algorithm together with a public-key cryptosystem, key encapsulation and message authentication.

Popular asymmetric encryption schemes are: RSA-OAEP (based on RSA and OAEP padding), RSAES-PKCS1-v1_5 (based on RSA and PKCS#1 v1.5 padding), DLIES (based on discrete logarithms and symmetric encryption) and ECIES (based on elliptic curve cryptography and symmetric encryption).

Key encapsulation mechanism (KEM)

Typically, public-key crypto systems can encrypt messages of limited length only and are slower than symmetric ciphers. For encrypting longer messages (e.g. PDF documents) usually a public-key encryption scheme (also known as hybrid encryption scheme) is used, which combines symmetric and asymmetric encryption

Key encapsulation mechanism (KEM): encapsulate an asymmetrically-encrypted random (ephemeral) symmetric key and use symmetric algorithm for the data encryption.

• For the encryption a random symmetric key sk is generated, the message is symmetrically encrypted by sk, then sk is asymmetrically encrypted using the recipient's public key.
• For decryption, first the sk key is asymmetrically decrypted using the recipient's private key, then the ciphertext is decrypted symmetrically using sk.

Asymmetric vs Symmetric

Symmetric and asymmetric encryption are two different types of encryption that are used in various applications. Symmetric is faster and more efficient, perfect for handling large amounts of data. On the other hand, asymmetric encoding offers greater security as parties do not need to exchange their secret keys.

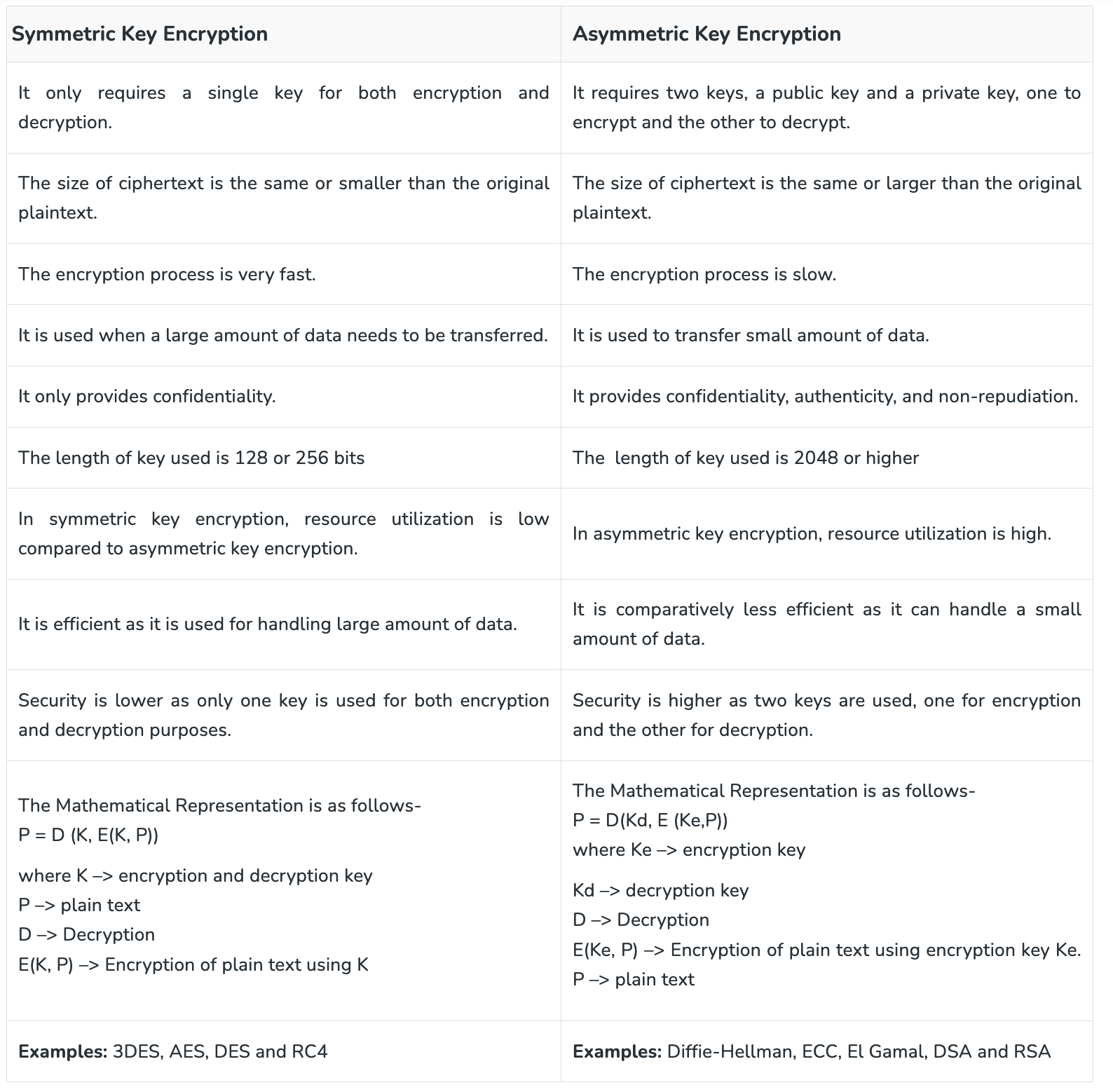

In order to decide wether using one type of another, here is a table with its main differences.

Digital Signatures

A digital signature is an unique and non-transferable electronic seal that links an individual or entity to a digital document or message. It works similarly to a traditional handwritten signature, but using advanced cryptographic techniques to ensure the authenticity, integrity and confidentiality of the information.

• Authentication, by serving as a credential to validate the identity of the entity that it is issued to.
• Encryption, for secure communication over insecure networks such as the internet.
• Integrity of documents signed with the certificate so that they cannot be altered by a third party in transit.

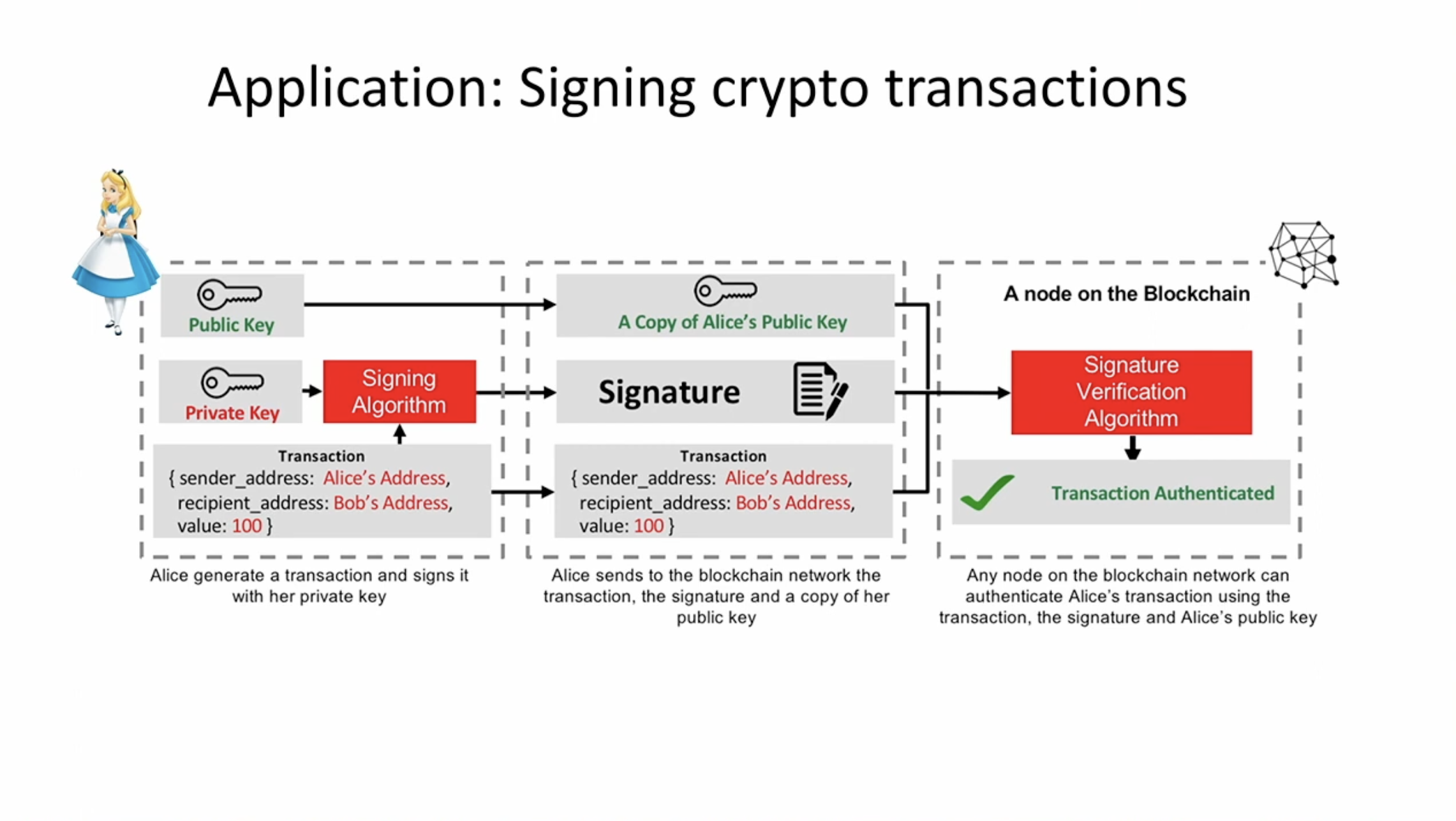

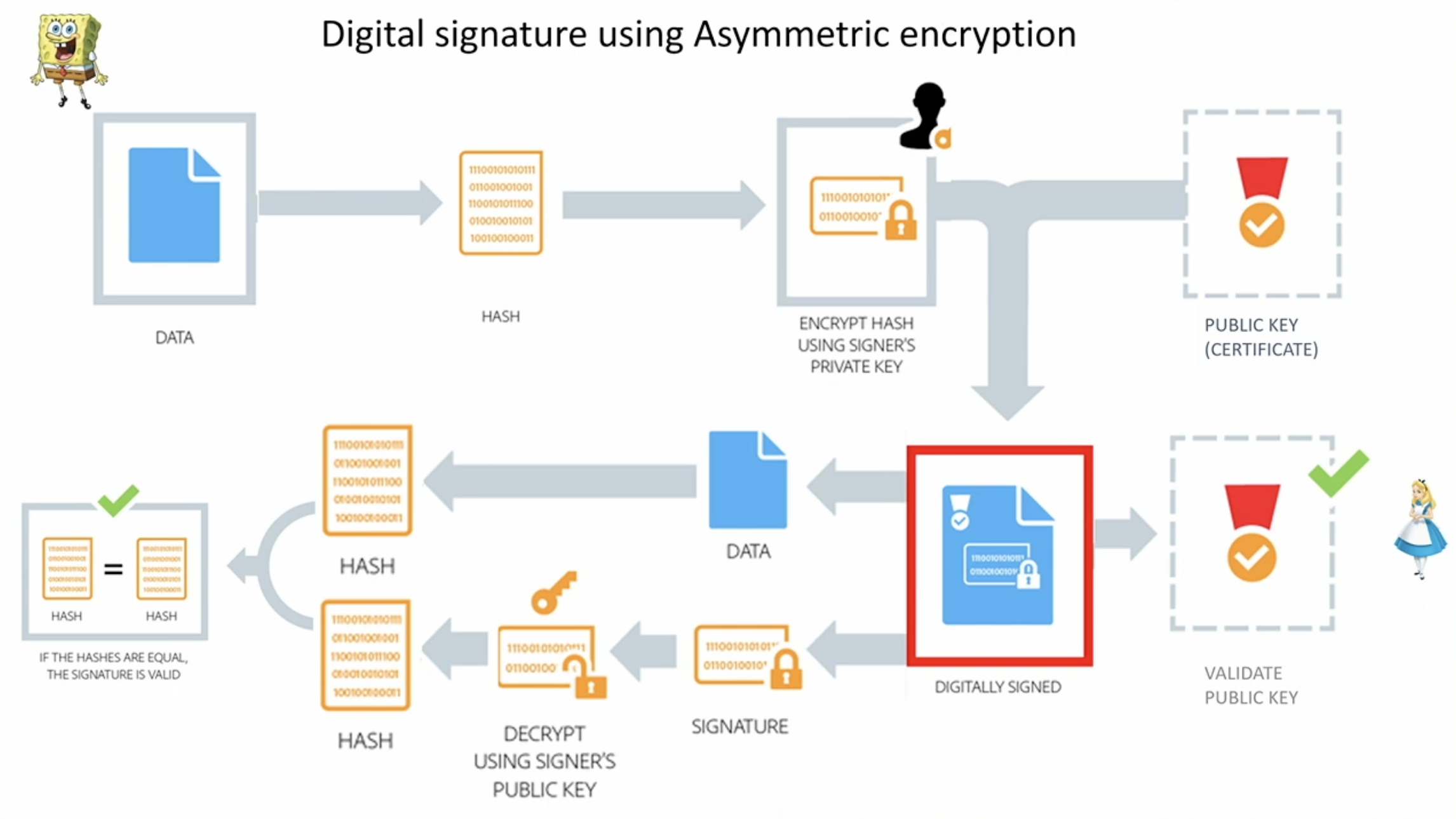

Digital signatures in short: a message can be signed by certain private key and the obtained signature can be later verified by the corresponding public key. A signed message cannot be altered after signing. A message signature proves that certain message (e.g. blockchain transaction) is created by the owner of certain public key.

Digital signatures are widely used in the finance industry for authorizing payments. In operating systems OS components and device drivers are usually digitally signed to avoid injecting insecure code, trojans or viruses in the OS. In blockchain systems, transactions are typically signed by the owner of certain blockchain address (which corresponds to certain public key and has corresponding private key). So a signed blockchain transaction holds a proof of authorship: it is guaranteed mathematically that the signature is created by the holder of certain blockchain address and the transaction was not modified after the signing. This works perfectly for the scenario of digital payments and digital signing of documents and contracts.

Certificates

Certificates are often used as containers for asymmetric keys because they can contain more information such as expiry dates and issuers. There is no difference between the two mechanisms for the cryptographic algorithm, and no difference in strength given the same key length. Generally, you use a certificate to encrypt other types of encryption keys in a database, or to sign code modules.

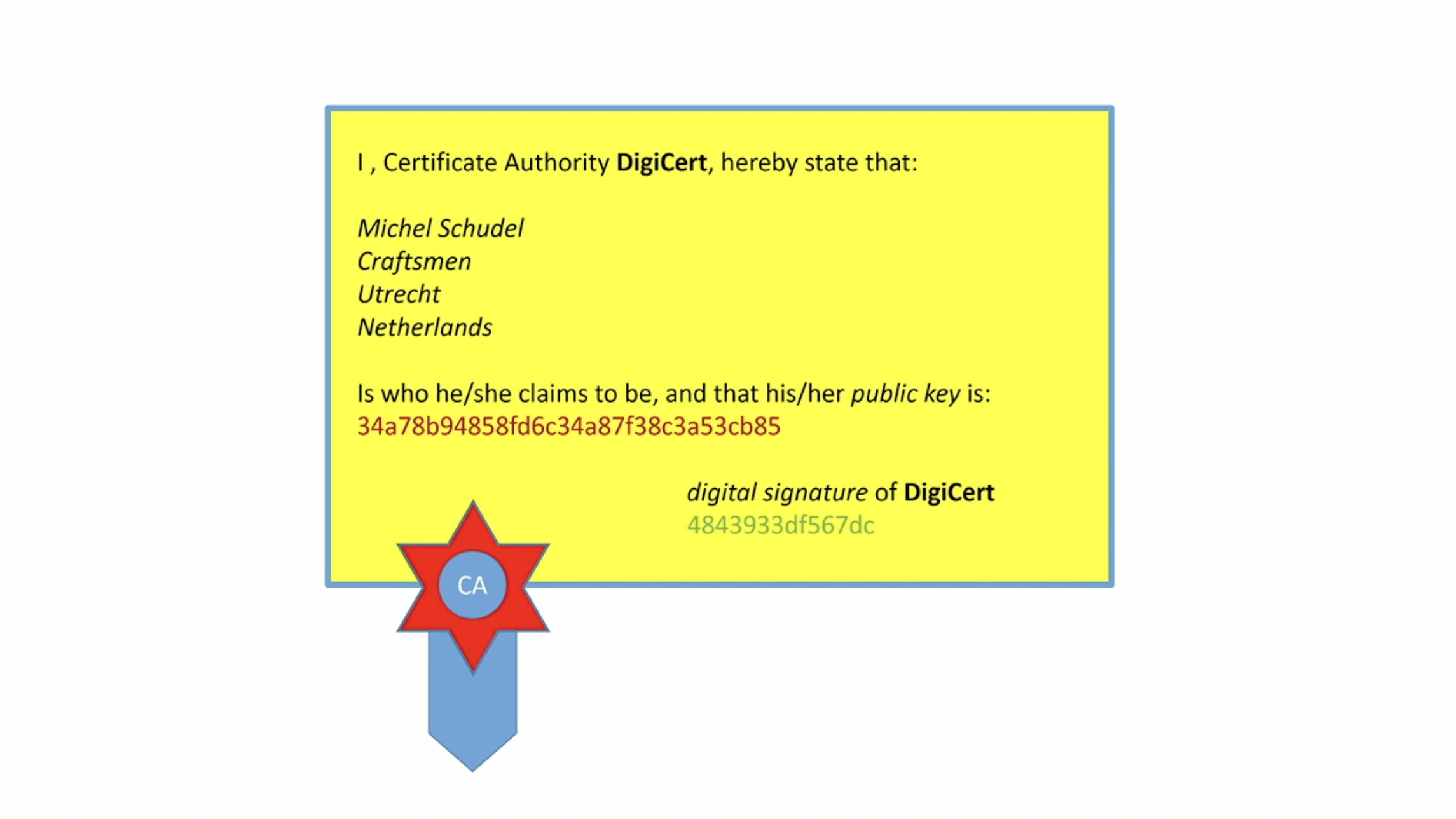

A certificate basically is a digitally signed security object that contains a public key (and optionally a private key) and additional content.

Types and Formats

There are a few different types of certificate formats that can be used for digital certificates. The most common format is the X.509 format, which is a standardized format that is often used for Internet security. Other formats include PGP, OpenPGP, andS/MIME. Each of these formats has its own advantages and disadvantages, so it’s important to choose the right one for your needs.

• X.509 certificates: X.509 certificates are the most common type of digital certificate. They are often used for website security and for email encryption. X.509 certificates can be issued by either a trusted third party or by a company or organization.
• PGP and OpenPGP Certificates: PGP and OpenPGP are two other types of digital certificates. PGP is a proprietary format that is owned by Symantec. OpenPGP is an open standard that is managed by the IETF. S/MIME is another type of digital certificate that is often used for email encryption.

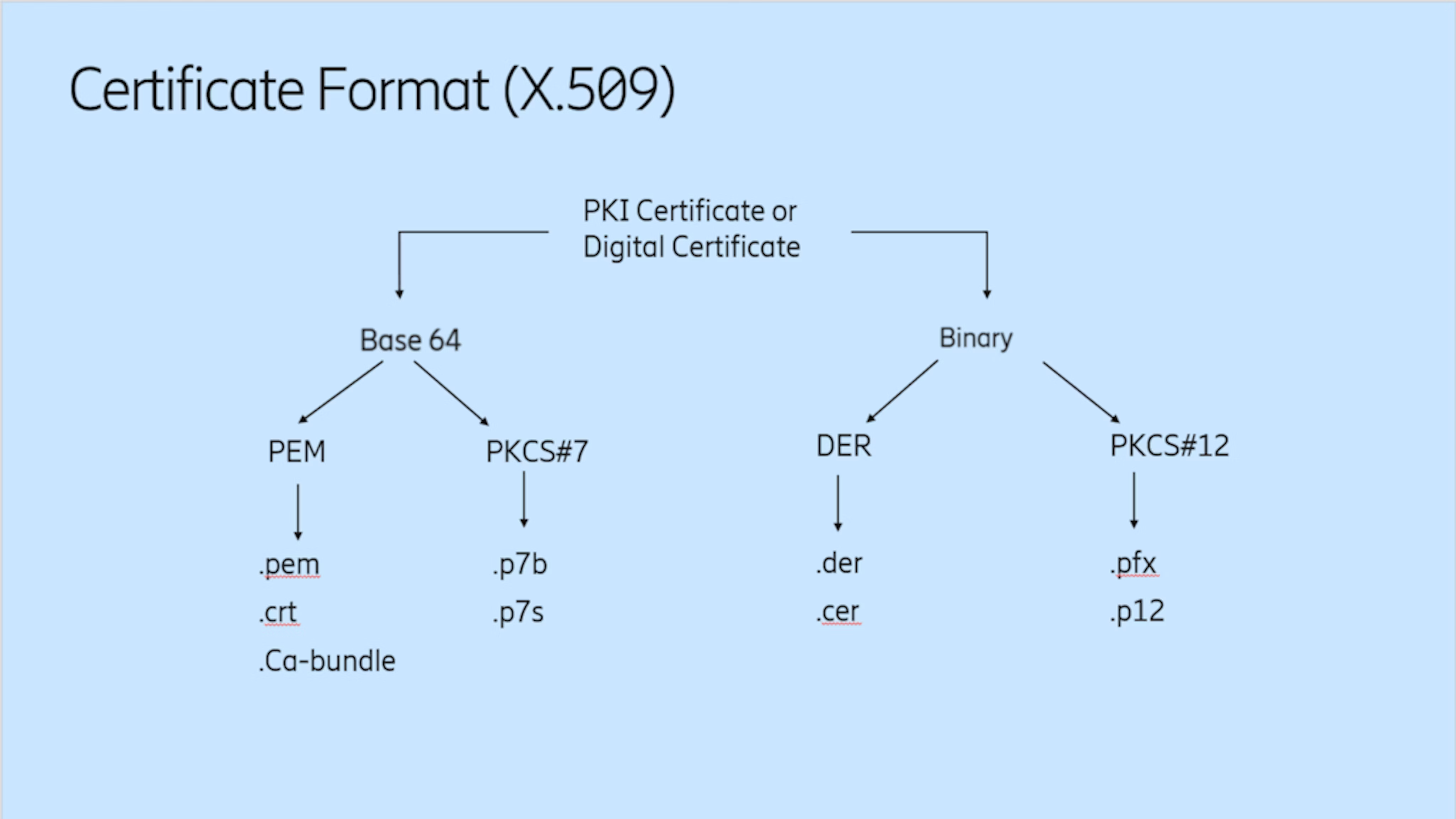

There are several encoding formats and extensions in X.509 certificate alone. You may have seen certificates in .pem, .crt, .p7b, .der, .pfx, and so many. If we ask if all the extensions are the same, the answer is both yes and no. All these certificates are the same but with different encoding standards. All that depends on the type of encoding your application, or operating system accepts.

Certificate Authority

A certificate authority (CA) is a trusted entity that issues a SSL/TLS certificates. These digital certificates are data files used to cryptographically link an entity with a public key. Web browsers use them to authenticate content sent from web servers, ensuring trust in content delivered online.

A certificate signing request (CSR) is sent to the certificate authority to obtain a digital certificate. A certificate can contain: Fully Qualified Domain Name (FQDN), Organization Name (ON), Organization Unit (OU), Country (C), City/State, email, etc.

SSL/TLS certificates and other types of certificates follow a similar CSR process.

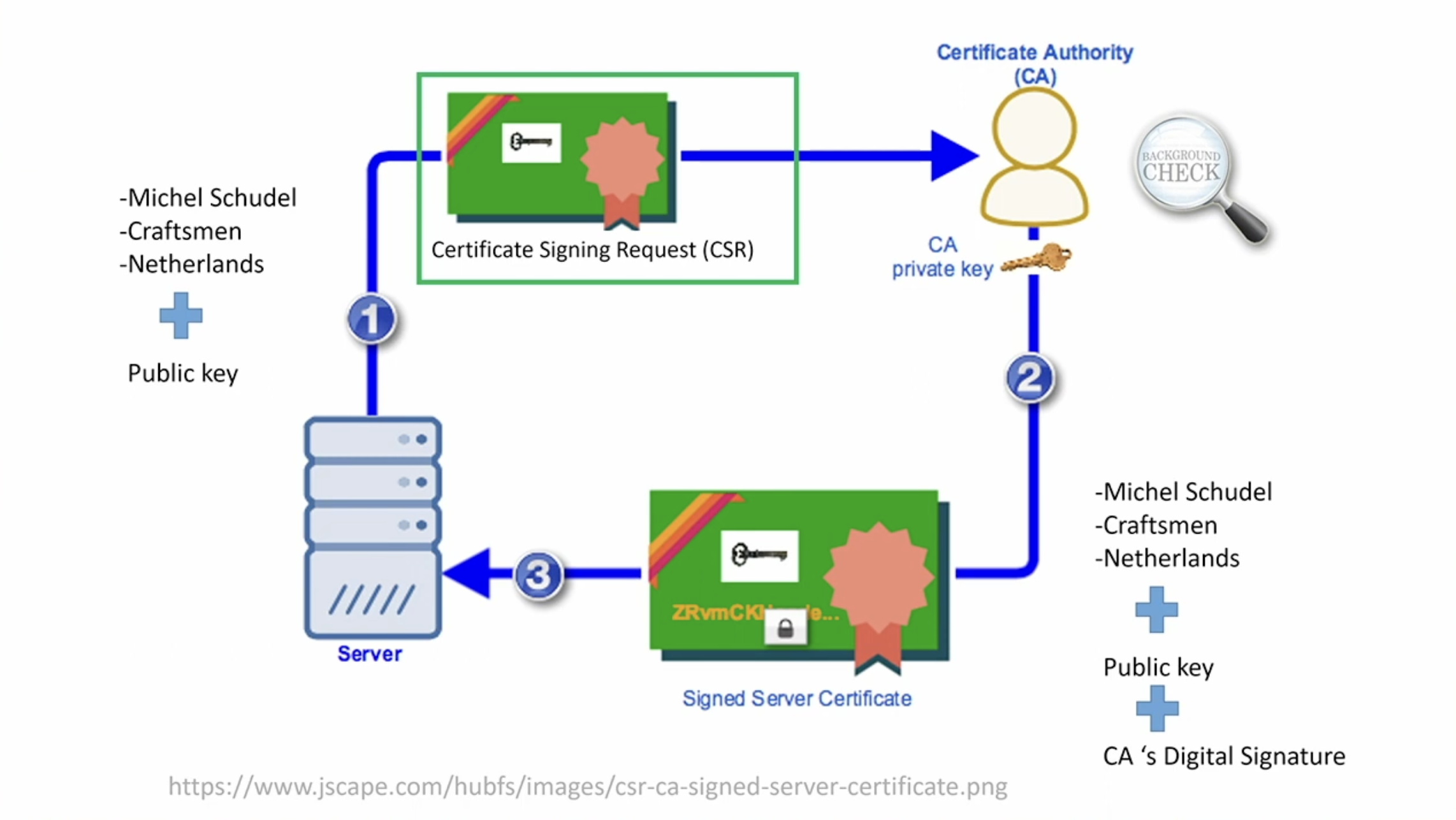

1. The client generates a key pair with the private and the public key. The private key is stored securely by the client. Then it generates a CSR (PKCS#10) which contains the subject, the generated public key and additional attributes.
2. Certificate Authority receives CSR and verifies the signature with the public key (Automatic Certificate Management Environment (ACME)). Then CA generates a Signed Server Certificate (X.509) by signing previous request with its own private key.
3. Finally, CA sends the certificate and the certificate chain to the client.

There are two types of certificate authorities (CAs): root CAs and intermediate CAs. For an SSL certificate to be trusted, that certificate must have been issued by a CA that’s included in the trusted store of the device that’s connecting.

If the certificate wasn’t issued by a trusted CA, the connecting device (eg. a web browser) checks to see if the certificate of the issuing CA was issued by a trusted CA. It continues checking until either a trusted CA is found (at which point a trusted, secure connection will be established), or no trusted CA can be found (at which point the device will usually display an error).

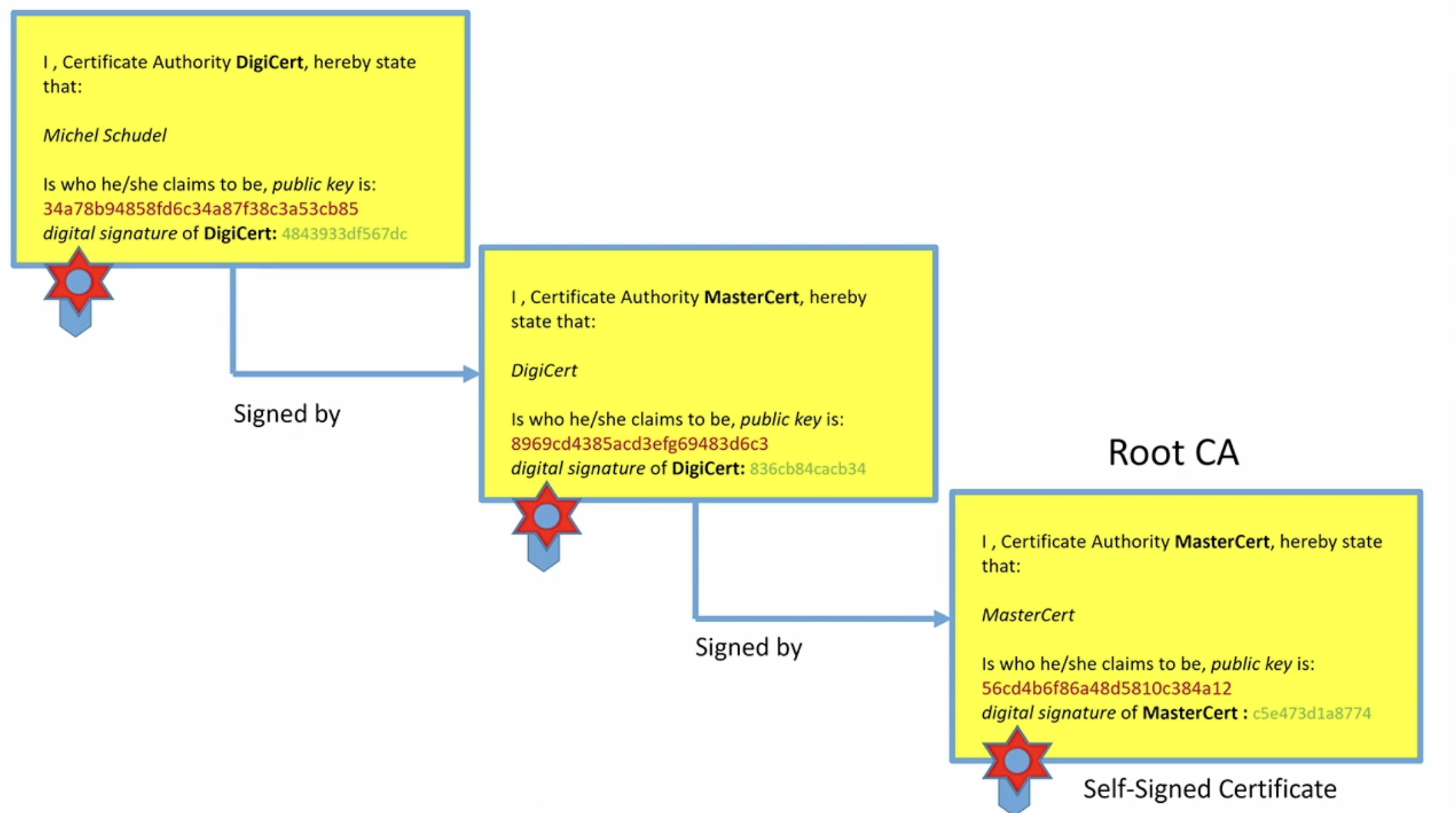

The list of SSL certificates, from the root certificate to the end-user certificate, represents the SSL certificate chain

SSL/TLS

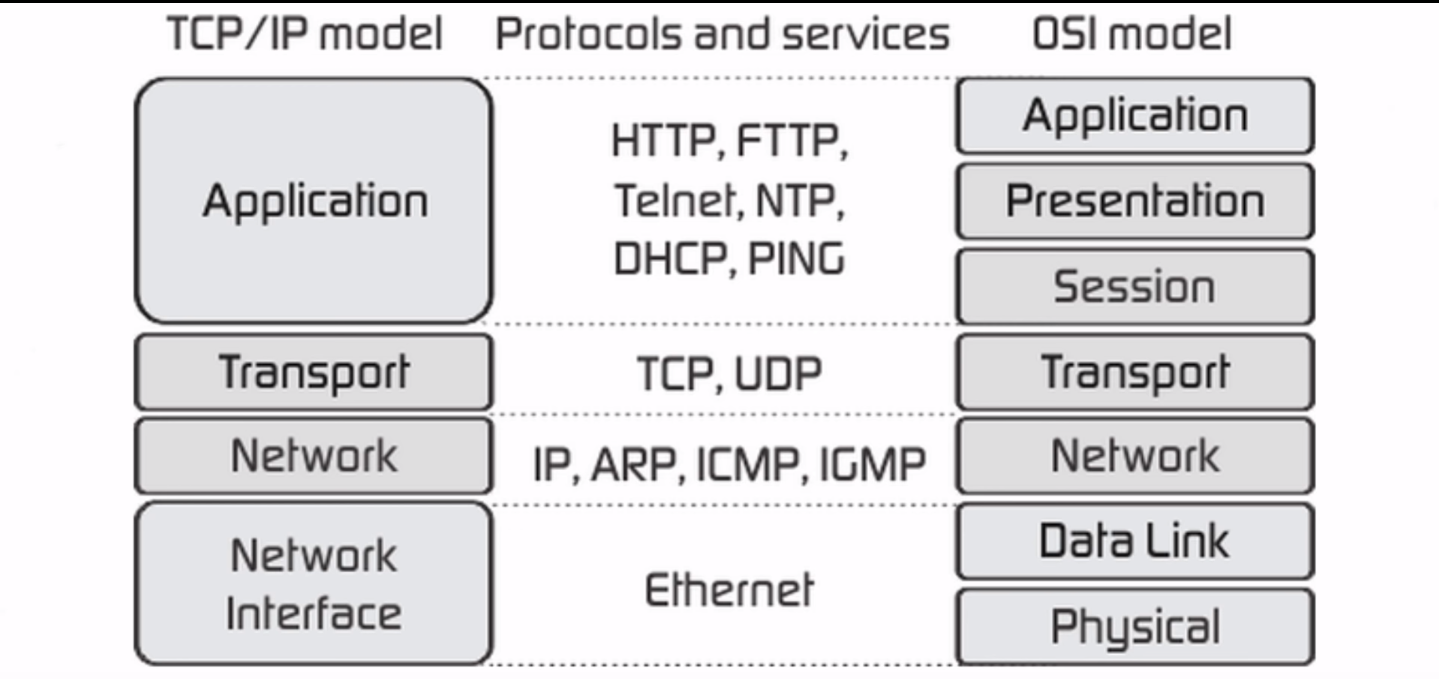

The Open Systems Interconnection (OSI) model is a way to divide up the problem of communicating between two remote computers. The abstract model has seven layers, and each layer has certain functions that should be performed by the service at that layer. Further, each layer needs only know about the layer below it, and needs to only worry about providing reliable information to the layer above it.

The Transmission Control Protocol/Internet Protocol (TCP/IP) model came before the OSI model. The key difference between TCP/IP and OSI model is that TCP/IP is a practical model that addresses specific communication challenges and relies on standardized protocols. In contrast, OSI serves as a comprehensive, protocol-independent framework designed to encompass various network communication methods.

The SSL/TLS protocol operates on:

• Application / Presentation / Session layers of OSI model
• Application layer of TCP/IP model

SSL and TLS protocols allow to exchange secure information between to computers. They are responsible for the following three things:

• Confidentiality: it's impossible to spy on exchanged information. Client and server must have the insurance that their conversation can't be listened to by someone else. This is ensured by an encryption algorithm.
• Integrity: it's impossible to falsify exchanged information. A client and a server must ensure that transmitted messages are neither truncated nor modified (integrity), and that they come from an expected sender. These functionalities are done by signature of data.
• Authentication: it allows to be sure of the software identity, the person or corporation with which we communicate. Since SSL 3.0, the server can also ask the client to authenticate, ensured by the use of certificates.

TLS and SSL protocols are based on a combination on both asymmetrical and symmetrical encryption.

HTTPS

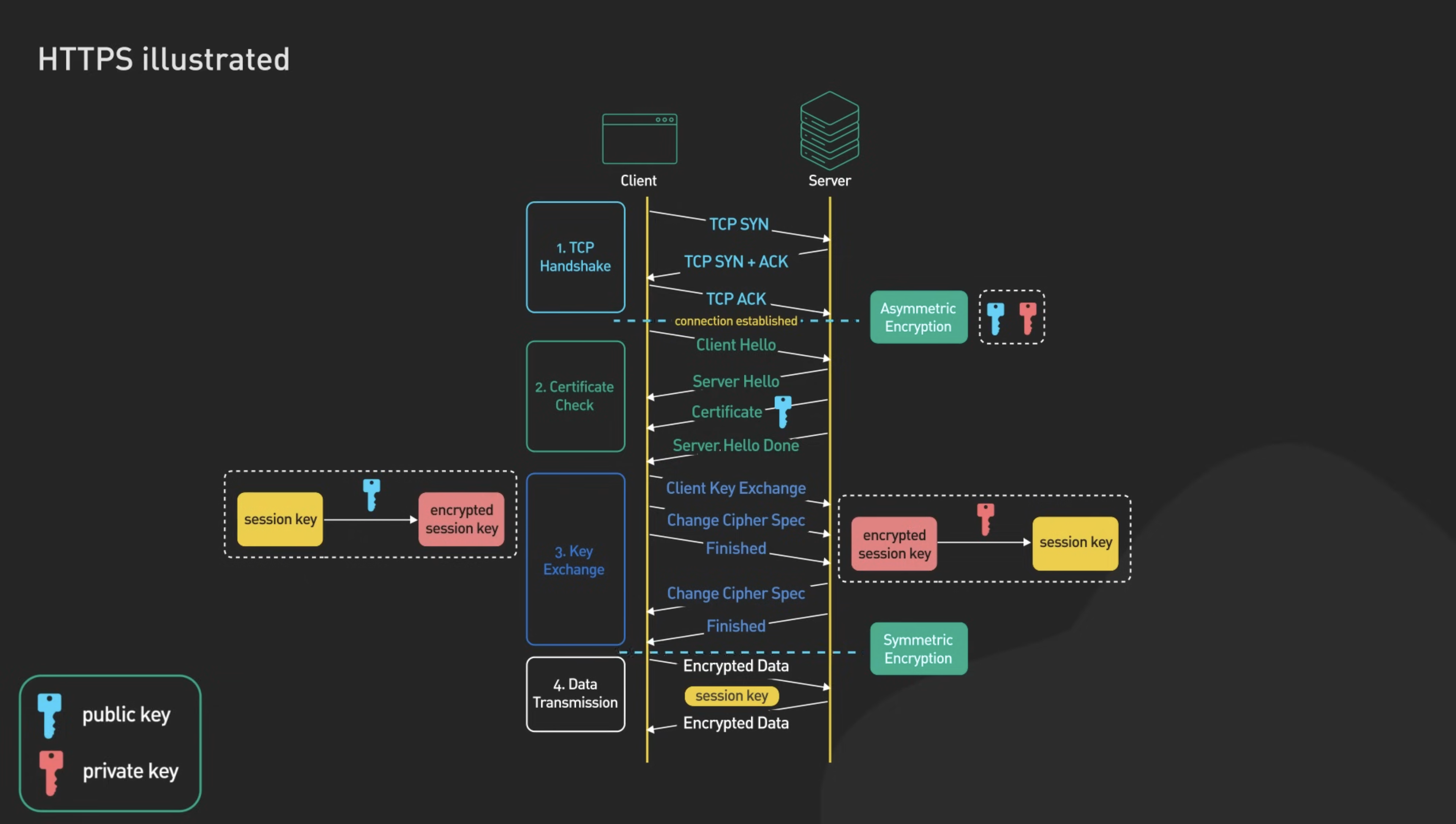

Hypertext transfer protocol secure (HTTPS) is an encrypted version of HTTP. Which is the protocol used to transfer data between web browsers (like Chrome) and servers (computers that host websites). Conceptually, HTTP/TLS is very simple. Simply use HTTP over TLS precisely as you would use HTTP over TCP.

1. Browser contacts website: The user's web browser attempts to connect to a website using HTTPS
2. SSL certificate sends: The website's server responds by sending its SSL/TLS certificate to the browser. This certificate contains the website’s public key (encryption key) and is used to establish a secure connection.
3. Browser verifies certificate: The browser checks the certificate to ensure it’s valid and is issued by a trusted certificate authority (like GoDaddy, DigiCert, Comodo, etc.). This step is crucial for confirming a website’s authenticity.
4. Encryption key exchange: The browser and the server establish an encrypted connection by exchanging keys once the certificate is verified. The browser uses the server's public key to encrypt information, which can only be decrypted by the private key (i.e., the decryption key) the server holds.
5. Encrypted data transfer: All data transferred between the browser and the server is encrypted after the secure connection is established. Which ensures it can’t be read by anyone intercepting the data.
6. Data decryption and display: The server decrypts the received data using the private key, processes it, and sends back the requested information. This data is also encrypted. The browser then decrypts the incoming data and displays the website content to the user.
